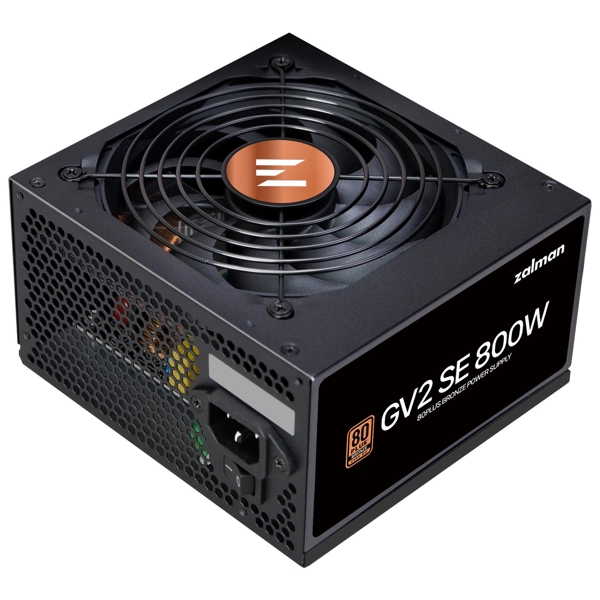

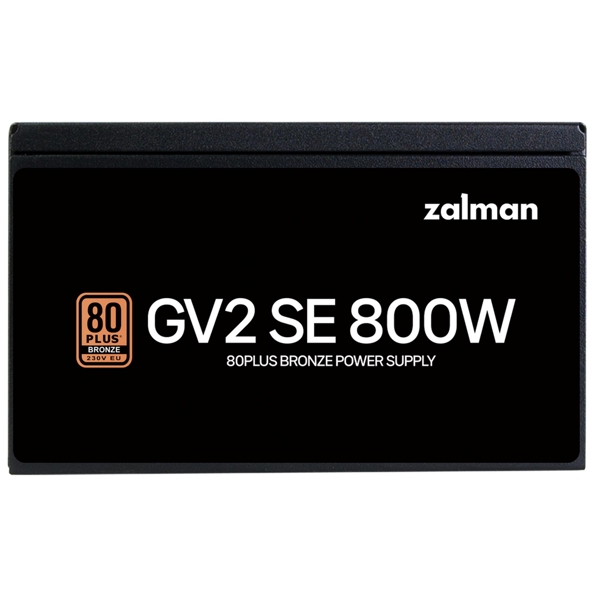

Power Supply Block Zalman PSU GV2SE (800W) 88%, 80+ Bronze, 120mm, 1xMB 24pin(20+4), 1xCPU(4+4 pin + 8pin), 4xMolex, 8xSATA, 4xPCIe 8pin(6+2)

Power Supply Block Zalman PSU GV2SE (800W) 88%, 80+ Bronze, 120mm, 1xMB 24pin(20+4), 1xCPU(4+4 pin + 8pin), 4xMolex, 8xSATA, 4xPCIe 8pin(6+2). Product specifications are listed below.

Key specifications

• Brand: Zalman
• Model: ZM800-GV2SE
• Product type: Power supply unit
• Power: 800 W
• Form factor: ATX
• PFC: Active
• Number of fans: 1
• Fan diameter: 120 mm
• ATX 12V standard: 2.52
• Efficiency: 88 % max., 230VAC, typical load
• 80 PLUS certificate: Bronze
• Input voltage: 220 V - 240 V
• Input current: 7 A
• Frequency: 50 Hz - 60 Hz
• Combined load
• 3.3V 20A; +5V 20A; +12V 66.66A, -12V 0.5A, +5VSB 3A
• Power connectors
• Connectors
• 1 x MB 24(20+4) pin, 550+20 mm
• 4 x Molex, 470+20 mm
• 4 x 8(6+2) pin PCI-E, 490+20 mm
• 1 x (4+4)+(8) pin 730+20 mm
• 8 x SATA, 450+200 mm
• Additional
• Safety
• UVP (under voltage protection)
• SCP (short circuit protection)
• OPP (over power protection)
• OTP (over temperature protection)
• OVP (over voltage protection)
• OCP (over current protection)
• Certificates
• CE
• CB
• RCM
• EAC
• KC
• RoHS
• Dimensions (Height x Width x Depth) 86 x 150 x 140 mm
• Weight 1.85 kg
• Color: Black
