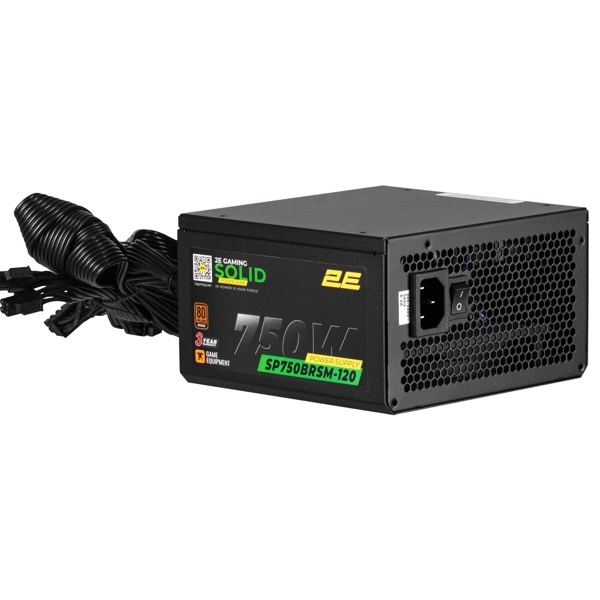

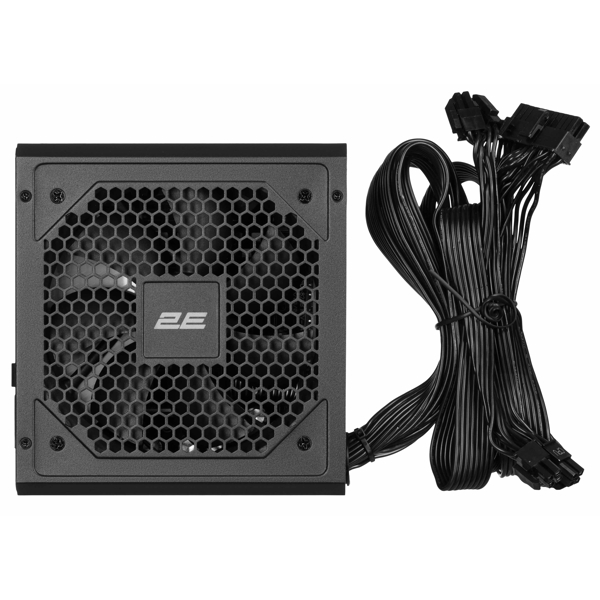

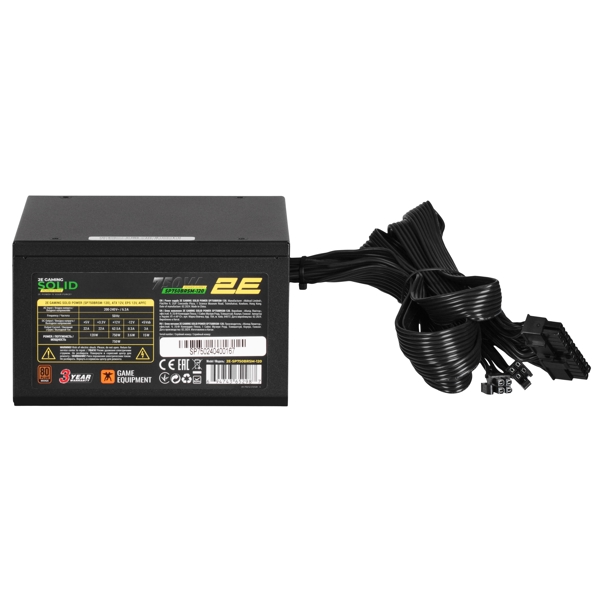

Power supply 2E 2E-SP750BRSM-120 Solid, 750W, 80 Plus, Power Supply, Black

Power supply 2E 2E-SP750BRSM-120 Solid, 750W, 80 Plus, Power Supply, Black. Product specifications are listed below.

Key specifications

• Brand: 2E
• Model: 2E-SP750BRSM-120
• Product type: Power Supply
• Type: For computer
• Purpose: Gaming/Mining
• Power 750 W
• Form factor: ATX
• PFC type: Active
• Fan diameter: 120 mm
• Efficiency: 85%
• Certification: 80 PLUS Bronze
• Input voltage: 200 V - 240 V
• Input current: 6.3 A
• Frequency: 50 Hz
• Maximum load
• 3.3V 22A; +5V 22A; +12V 62.5A, -12V 0.3A; +5VSB 3A
• Power connectors
• Modular connection system: Semi-modular

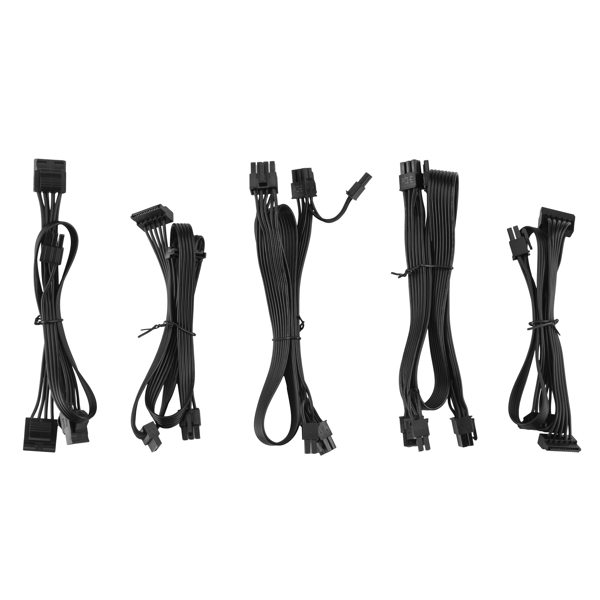

• Connectors
• 1 x MB 24(20+4) pin, 500mm
• 2 x CPU 8(4+4) pin, 600+150mm
• 6 x SATA, (400+150+150mm)*2 modular
• 3 x Molex, 400+150+150mm modular
• 4 x PCI-E 8(6+2) pin, (500+150mm)*2 modular
• Security
• UVP (Protection against undervoltage in the network)
• OVP (Protection against increased voltage in the network)
• SCP (Short Circuit Protection)
• OPP (Overload Protection)
• OCP (Over Current Protection)
• CE certificates
• CB
• EAC
• RoHS
• Dimensions (HxWxD): 86 x 140 x 150 mm
• Cord length: 1.2 m
• Weight: 2.15 kg
• Color: Black
