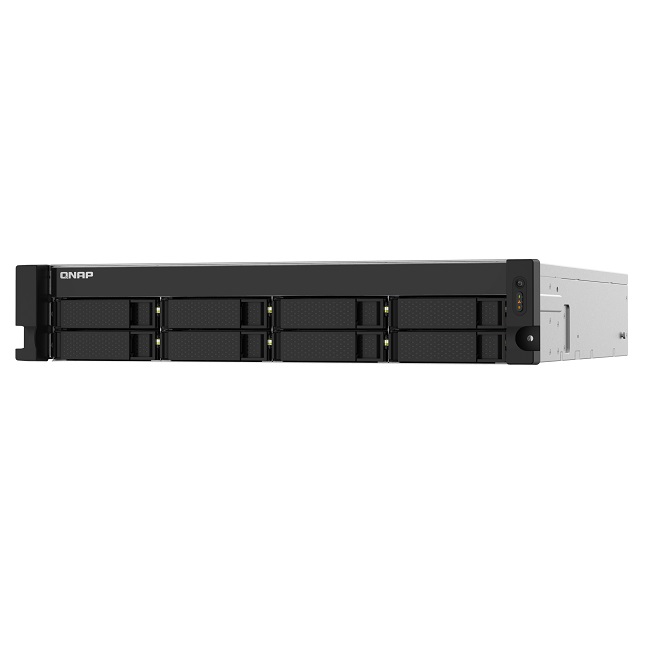

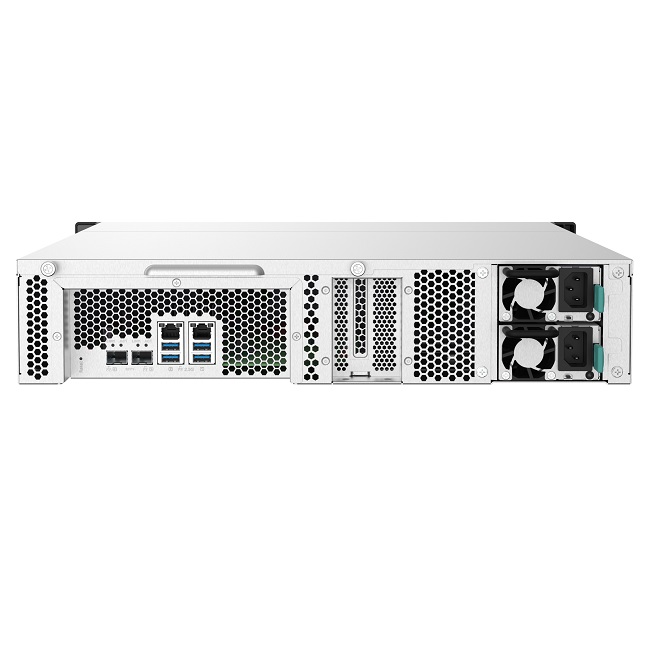

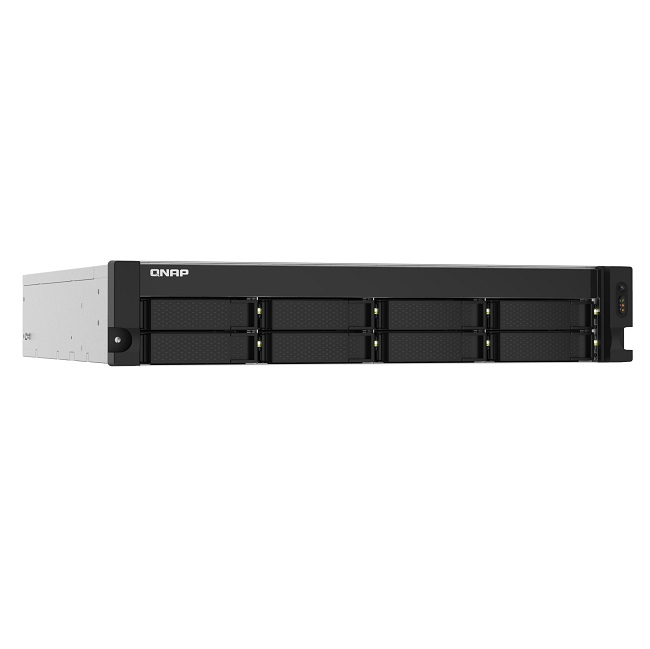

NAS QNAP TS-832PXU-RP-4G

NAS QNAP TS-832PXU-RP-4G. Product information is based on the data provided in the MUK supplier catalog.

Processor AnnapurnaLabs Alpine AL324 64-bit 4-core ARM® Cortex-A57 processor with a clock speed of 1.7 GHz CPU Architecture 64-bit ARM System memory 4 GB UDIMM DDR4 (1 x 4 GB) Maximum memory 16 GB (1 x 16 GB) Memory slot 1 x UDIMM DDR4 Flash memory 512 MB (dual-boot OS protection) Drive Bay 8 SATA 3.5-inch ports, 6 Gbit/s, 3 Gbit/s Drive compatibility 3.5-inch bays: 3.5-inch SATA hard drives 2.5-inch SATA hard drives 2.5-inch SATA solid-state drives 2.5Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10m) 10-Gigabit Ethernet port 2 10GbE SFP+ ports Jumbo Frame PCIe Slot 1 Slot 1 PCIe Generation 2 x2 PCIe bandwidth limitations limit the performance of a 10GbE NAS. Card sizes for PCIe slot 220 x 68.9 x 18.76 mm / 8.67 x 2.71 x 0.74 inches. 1st Generation USB 3.2 port 4 The shape factor 2U for rack mounting LED indicators Hard disk 1-8, status, local network, storage expansion Buttons Power Supply, Reset Dimensions (HxWxD) 88.6×432×511 mm Weight (net) 12.47 kg Weight (gross) 14.61 kg Operating Temperature 0–40 °C (32–104 °F) Storage temperature -20–70°C (-4–158°F) Relative humidity Relative humidity 5-95%, non-condensing, according to a wet thermometer: 27°C (80.6°F)

• Brand: QNAP

• Model: TS-832PXU-RP-4G

• Number of drive bays: 8

• RAID support: RAID 0, 1, 5, 6, 10, 50, 60

• Maximum CPU clock frequency, GHz: 1.7

• RAM type: UDIMM DDR4

• Number of power supplies (installed): 2

• Warranty period, months: 36

• Supported disk types: 3.5" SATA HDD / 2.5" SATA HDD /2.5" SATA SSD

• CPU: Annapurna AL324 4-Core

• Amount of installed RAM, GB: 4

• Number of processors: 1

• Number of processor cores: 4

• Number of pre-installed disks: 0
