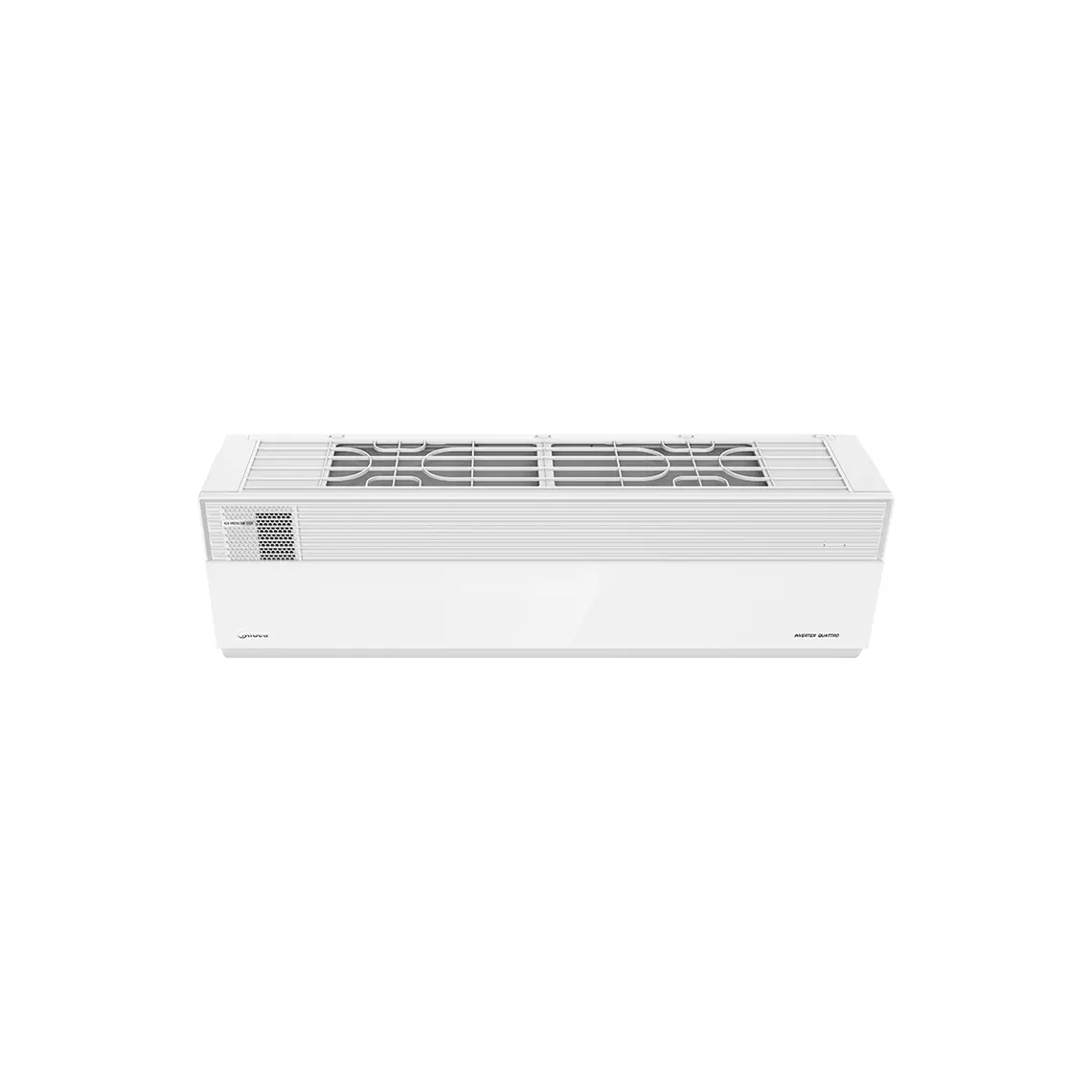

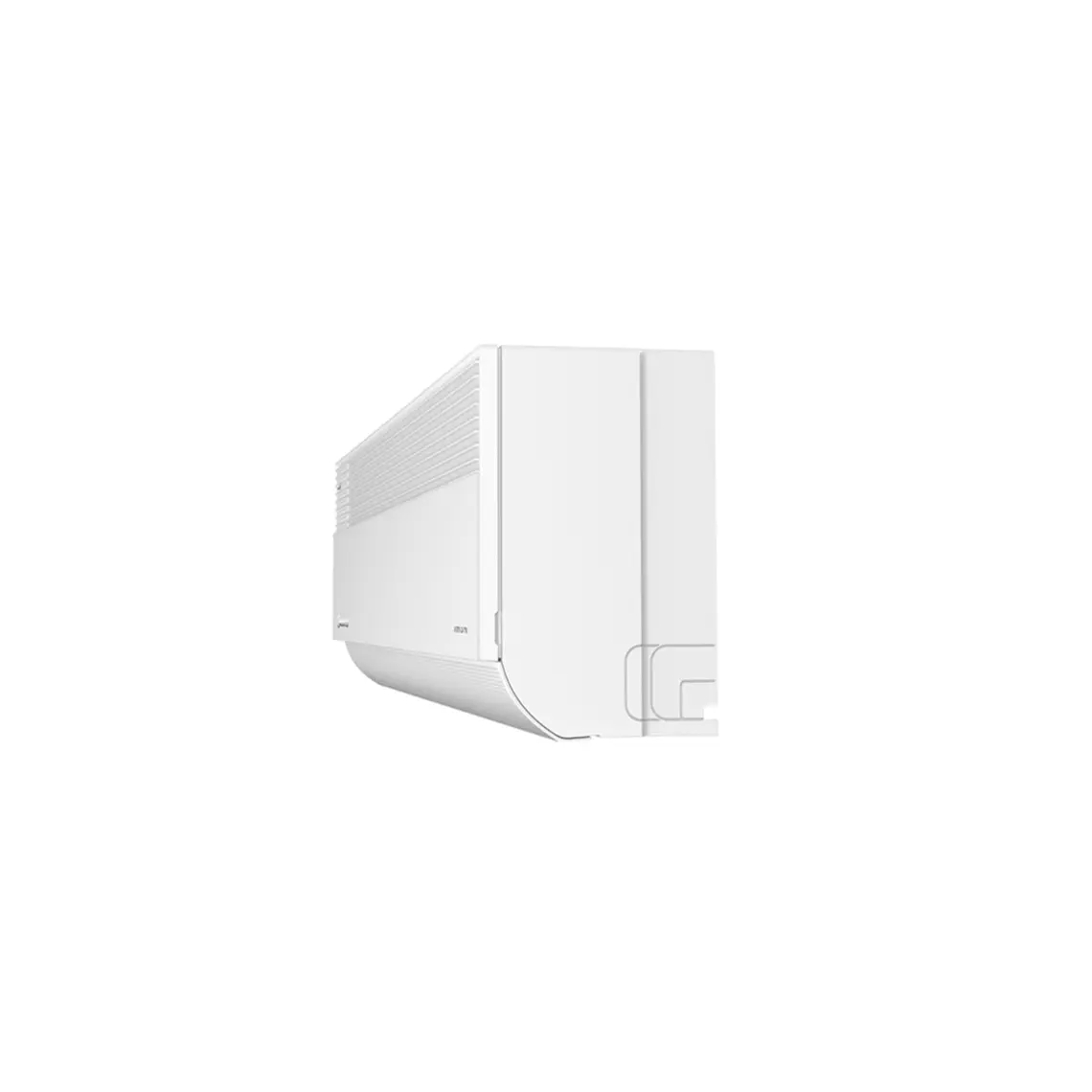

MIDEA GAIA-12HRFN8

Key features

Recommended area: 30–40 m². Type: wall split system. Heating capacity: 13,000 BTU/h (3,000–15,000). Cooling capacity: 12,000 BTU/h (4,500–14,700). Energy class: A+++ / A++. Refrigerant: R32. Modes: heating / cooling. Compressor technology: inverter (GA Stepless). Maximum power consumption: 2300 W. Refrigerant charge: 0.7 kg.

Functions and technologies

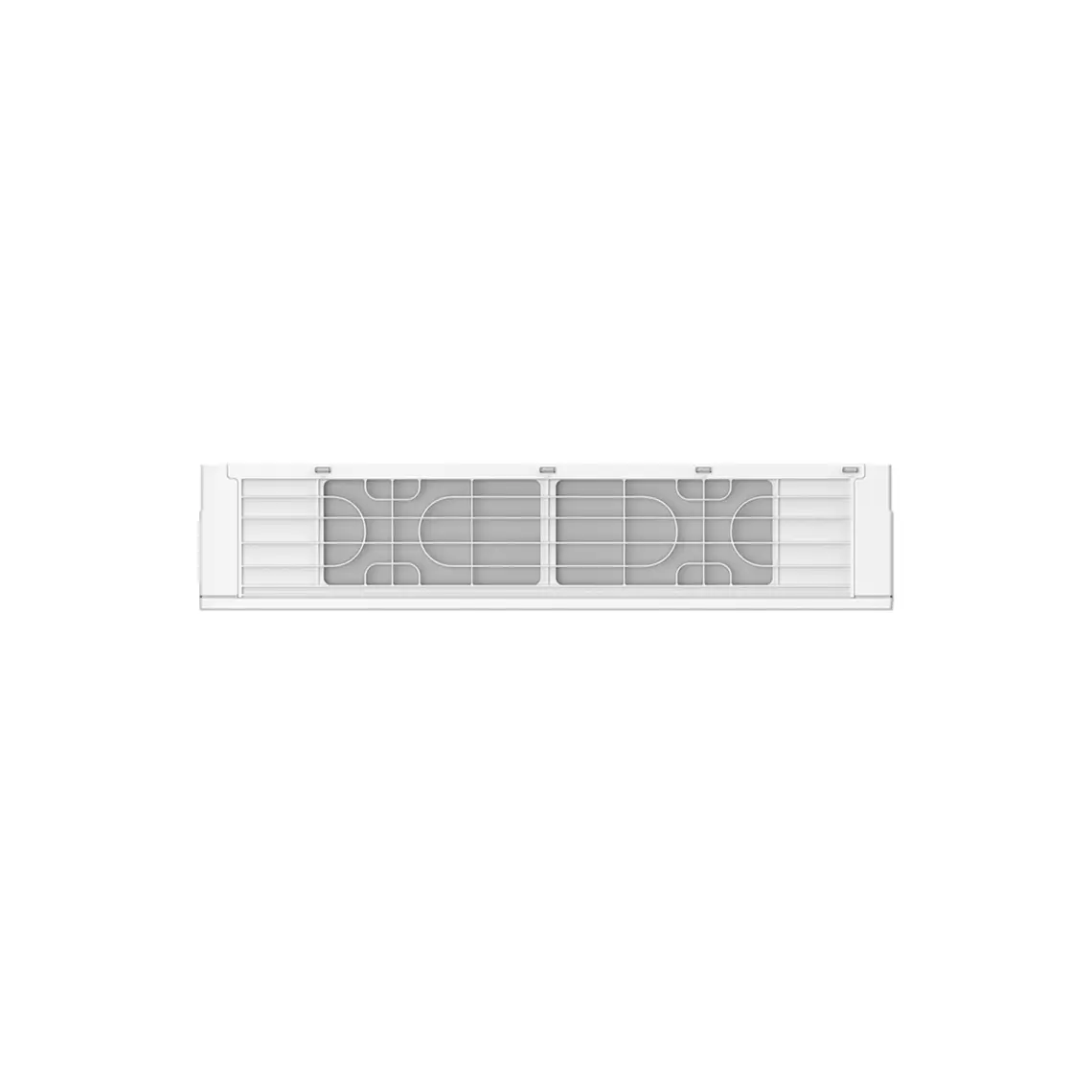

Fresh Air — outdoor fresh air intake. 56°C self-cleaning. Silky Cool — gentle air distribution. Follow Me — temperature control by remote location. GEAR and IECO — energy saving modes. Wi‑Fi support and smart control. HD air filtration. Quiet operation and anti-corrosion protective coating. Remote control and energy-saving standby mode (1 W).

Operating conditions and noise

Outdoor temperature for heating: −15°C to +24°C. Outdoor temperature for cooling: −15°C to +50°C. Indoor cooling temperature range: +16°C to +32°C. Indoor heating temperature range: 0°C to +30°C. Indoor unit noise levels: 21 / 22 / 33 / 40 / 59 dB.

Physical specifications

Indoor unit dimensions: 984 × 333 × 198 mm. Outdoor unit dimensions: 765 × 303 × 555 mm. Maximum refrigerant pipe length: 25 m. Maximum height difference: 10 m. Liquid pipe diameter: 6.35 mm. Gas pipe diameter: 9.52 mm. Power supply: 220–240V / 50Hz. Maximum current: 8.5 A. Color: White.
